Productdetails
Plaats van herkomst: Chinees
Merknaam: VINNCOM
Certificering: ISO9000 RoHS
Modelnummer: Vn-pd-0560-IS4
Betaling & het Verschepen Termijnen
Min. bestelaantal: 5 stuks
Prijs: negotiable
Verpakking Details: Doos/Karton
Levertijd: Hangt van Uw Hoeveelheid af
Betalingscondities: L/C, D/A, D/P, T/T
Levering vermogen: 200pcs per dag
Operating Frequency ( MHz ): |
500-6000 |
Impedance( Ohm ): |
50 |
VSWR (Inputhaven): |
≤ 1.3 |
VSWR(Output Port): |
≤1.20 |
Invoegingsverlies: |
≤1.8 (SMA) |
Average Power (Watt max.): |
30(Used as a Splitter) 2(Used as a Combiner) |
Isolatie (dB): |
≥20 |
Amplitude Balance(dB): |
±0.3(SMA) |
Fasesaldo (dB): |
±4° (SMA) |
Interface: |
SMA-Wijfje (IS4) |
Operating Frequency ( MHz ): |
500-6000 |
Impedance( Ohm ): |
50 |
VSWR (Inputhaven): |
≤ 1.3 |
VSWR(Output Port): |
≤1.20 |
Invoegingsverlies: |
≤1.8 (SMA) |
Average Power (Watt max.): |
30(Used as a Splitter) 2(Used as a Combiner) |
Isolatie (dB): |
≥20 |
Amplitude Balance(dB): |
±0.3(SMA) |
Fasesaldo (dB): |
±4° (SMA) |
Interface: |
SMA-Wijfje (IS4) |

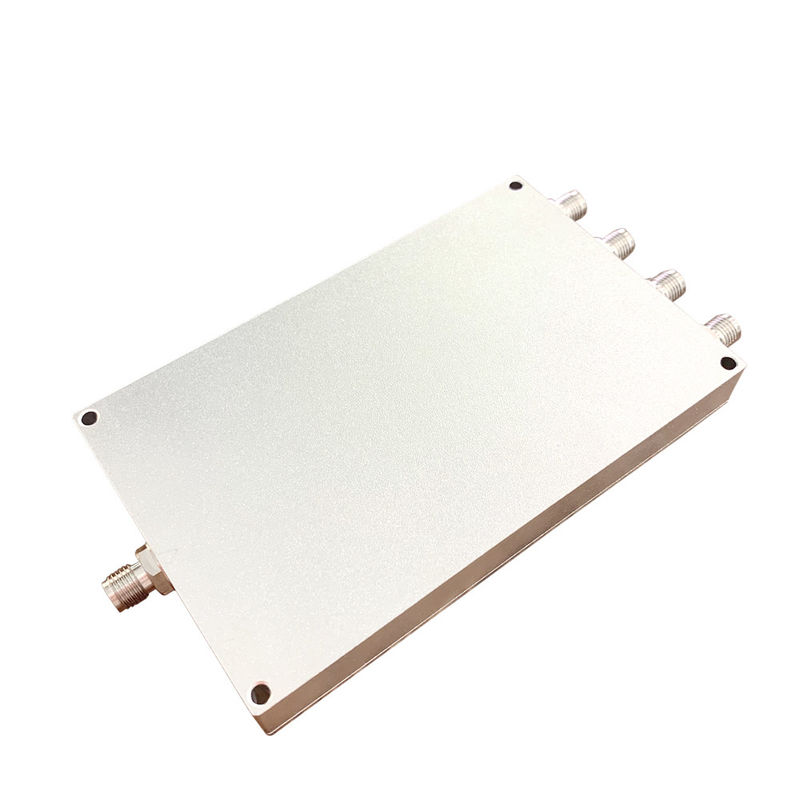

500-6000MHz Wilkinson SMA Vrouwelijke 4-weg Power Divider/Combiner
Deelnummer | VN-PD-0560-IS4 |
Werksfrequentie (MHz) | 500-6000 |
Impedantie ((Ohm)) |
50 |
VSWR ((Invoerpoort) |
≤ 1.3 |
VSWR ((Uitgangspoort) |
≤ 1.20 |
Invoegverlies | ≤1,8 (SMA) |
Gemiddeld vermogen (Watt max.) | 30 (Gebruikt als splitser) 2 (Gebruikt als combinator) |
Isolatie ((dB) |
≥ 20 |
Amplitudebalans (dB) |
±0,3 (SMA) |
Fasebalans ((dB) |
±4° (SMA) |
Werktemperatuur ((°C) |
-35 ~ + 75c |
Interface |
SMA Vrouwelijke ((IS4) |
Afmetingen ((mm,L×W×H, exclusief aansluiting) |
100x62x12 |
Afmetingstoeveelheid ((mm) |
±0.5 |
Montage |
4-Φ2,8 mm doorgat |
