Productdetails
Plaats van herkomst: China
Merknaam: Vinncom
Certificering: RoHS/ISO9000
Modelnummer: Vn-pd-3g-OX2
Betaling & het Verschepen Termijnen
Min. bestelaantal: 5 stuks
Prijs: negotiable
Verpakking Details: foam+box
Levertijd: 2-4weeks
Betalingscondities: T/T, Western Union
Levering vermogen: 50pcs per dag
Operating Frequency ( GHz ): |
DC-3G |
Impedance( Ohm ): |
50 |
VSWR(Input Port): |
≤1.20 |
VSWR(Output Port): |
≤1.20 |
Insertion loss: |
≤6.8 |
Average Power (Watt max.): |
2W |
Isolation(dB): |
≥5.6 |
Amplitude Balance(dB): |
±0.3 |
Operating Frequency ( GHz ): |
DC-3G |
Impedance( Ohm ): |
50 |
VSWR(Input Port): |
≤1.20 |
VSWR(Output Port): |
≤1.20 |
Insertion loss: |
≤6.8 |
Average Power (Watt max.): |
2W |
Isolation(dB): |
≥5.6 |
Amplitude Balance(dB): |
±0.3 |

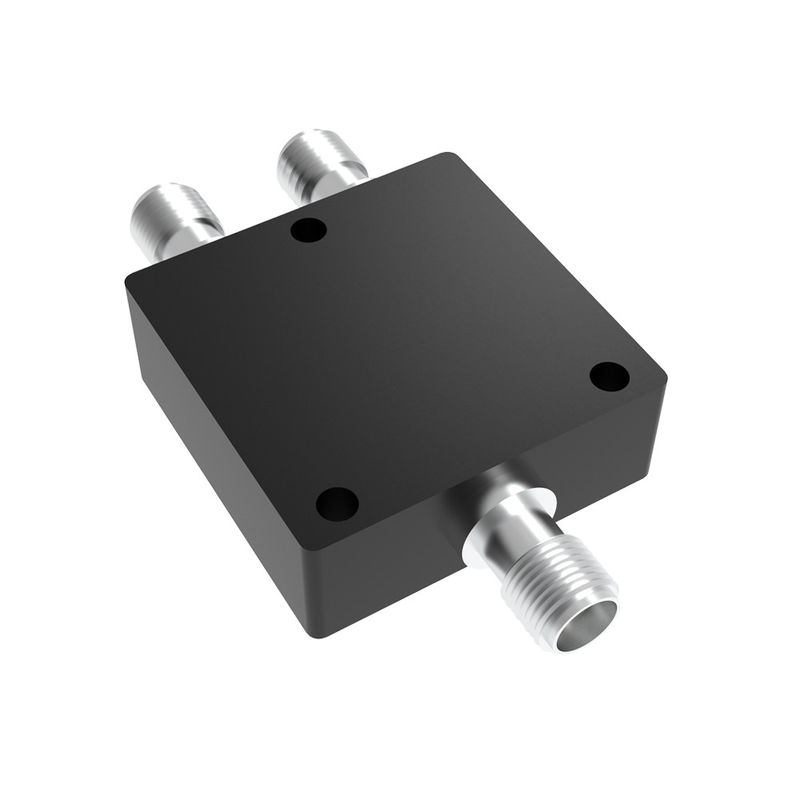

3G 2 Way 50 Ohm Resistive Power Divider SMA Vrouwelijk
Deelnummer | VN-PD-3G-OX2 |
Werkfrequentie (GHz) | DC-3G |
Impedantie ((Ohm)) |
50 |
VSWR ((Invoerpoort) |
≤ 1.20 |
VSWR ((Uitgangspoort) |
≤ 1.20 |
Invoegverlies | ≤ 6.8 |
Gemiddeld vermogen (Watt max.) | 2W |
Isolatie ((dB) |
≥ 56 |
Amplitudebalans (dB) |
±0.3 |
Werktemperatuur ((°C) |
-35 ~ + 75c |
Interface |
SMA Vrouwelijk |
Afmetingstoeveelheid ((mm) |
±0.5 |
Montage |
3-Φ2,7 mm doorlaat (SMA) |
