64-71GHz WR-12 WAVEGUIDE CIRCULATOR VN-WGCIR-6471-WR12

MOQ:	5 stuks
Prijs:	negotiable
Standaard Verpakking:	foam+box
Levertijd:	2-4 weken
Betaalmethode:	T/T, Western Union
Leveringscapaciteit:	50 stuks per dag

Gedetailleerde informatie

Productomschrijving

Gedetailleerde informatie

Plaats van herkomst

China

Merknaam

Vinncom

Certificering

RoHS/ISO9000

Modelnummer

VN-WGCIR-6471-WR12

Werkende Frequentie (GHz):

64-71

Werkende Temperatuur (℃):

-45~+80

Toevoegingsverlies (Maximum dB):

Isolatie (dB Min):

Isolatie (dB):

Markeren:

64-71GHz WR-12 waveguide circulator

WR-12 RF circulator isolator

waveguide circulator with warranty

Productomschrijving

64-71GHz WR-12 WAVEGUIDE CIRCULATOR

Compact and rugged waveguide construction
Protection of sensitive sources from reflected power
High power handling capability

A WAVEGUIDE CIRCULATOR is a non-reciprocal, three‑port (or four‑port) ferrite device.
A WAVEGUIDE CIRCULATOR uses a magnetically biased ferrite element to create non‑reciprocal phase shift.
When a signal enters port 1 of a WAVEGUIDE CIRCULATOR, it exits only from port 2, not port 3.
Similarly, a WAVEGUIDE CIRCULATOR directs a signal from port 2 to port 3, and from port 3 to port 1.
Therefore, a WAVEGUIDE CIRCULATOR provides unidirectional circulation of microwave energy.
Because of this property, a WAVEGUIDE CIRCULATOR isolates input ports from output ports while maintaining low insertion loss in the forward direction.

VN-WGCIR-6471-WR12.pdf

Part Number	VN-WGCIR-6471-WR12
Operating Frequency ( GHz )	64-71
Insertion Loss(dB)	≤0.8
Isolation(dB)	≥16
Return Loss(dB)	≥16
Operating Temperature ( ℃ )	-45 ~ + 80
Interface	WR12 with UG-383/U Anti-Cocking

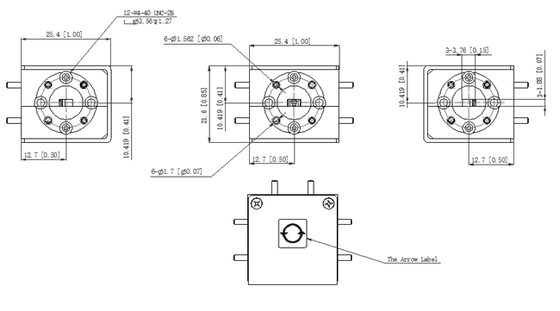

Dimension(mm)	As below
Handling Power	3W/3W
ROHS Compliance	Yes
